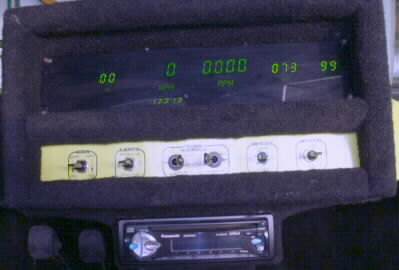

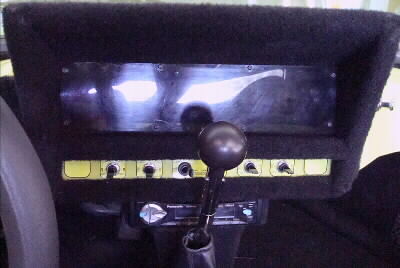

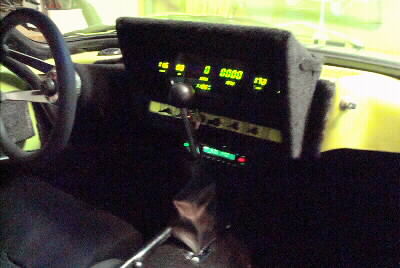

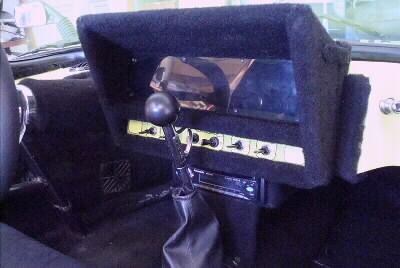

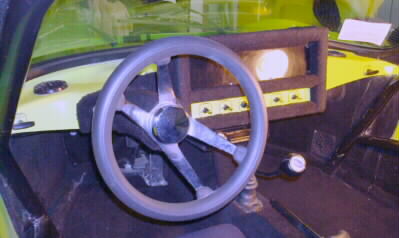

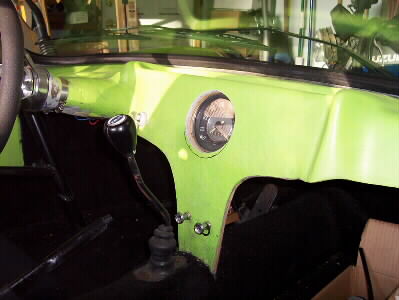

The Story! The first picture shows the dashboard the way it was when I purchased it. The next two pictures show the first digital LED board and switch panel I built. Unfortunately, in my efforts to angle it toward the driver and just generally not paying attention to how big it was getting, the dash encroached into the cockpit so much that only the specially bent stock shift lever would work. Since I wanted to use an after market shifter with a notchier feel and shorter throw, in July of 2009 I decided to build a new dash which encroached less at the bottom. Whereas the first one protruded more than four (4) inches from the original dash, the new one only protruded about one and three-quarters inches (1.75) at the bottom. I did extend the top to aid in seeing the panel in bright sunlight. The last three pictures show the new dash. You may notice that the horn and turn signal switches are on the panel. The turn indicater that came in the car was a universal non-cancelling one, which I tended to kick when I climbed into the car. I like a clean & simple steering column and got used to the having those switches on the panel in my BAHA bug, so I put them on the dash panel again. I'm sorry the glare obscures how nice it really looks.

My To-Do List! Following is a list of things that I have or am planning on doing. Clicking on the completed date will show a before & after picture if the item is done, or possibly a before only picture if it has not been completed yet!

Item No.	Completed?	Description
1.	10/18/07	Make sure all bolts present, nutted & tightened.
2.	10/20/07	Trade tires & wheels with Baha Bug
3.	10/24/07	Align rear bumpers, Name plate, Speedo cable
4.	10/24/07	Re-mount Seats/Shoulder Belts
5.	10/27/07	Install clear headlight covers & horn
6.	11/05/07	Install missing SMOG components/Gas tank vent system
7.	11/11/07	Shelf extension/Battery Cover/Rearview mirror
8.	11/26/07	Align top/Install headliner
9.	12/23/07	Install heater ducts
10.	01/12/08	Rewire, fuse blocks, terminal strips, etc.
11.	01/12/08	New LED Dashboard
12.	03/15/08	Stereo Installation
13.	07/09/08	Back window
14.	10/12/08	Make/install doors
15.	??/??/??	Misc. Details
